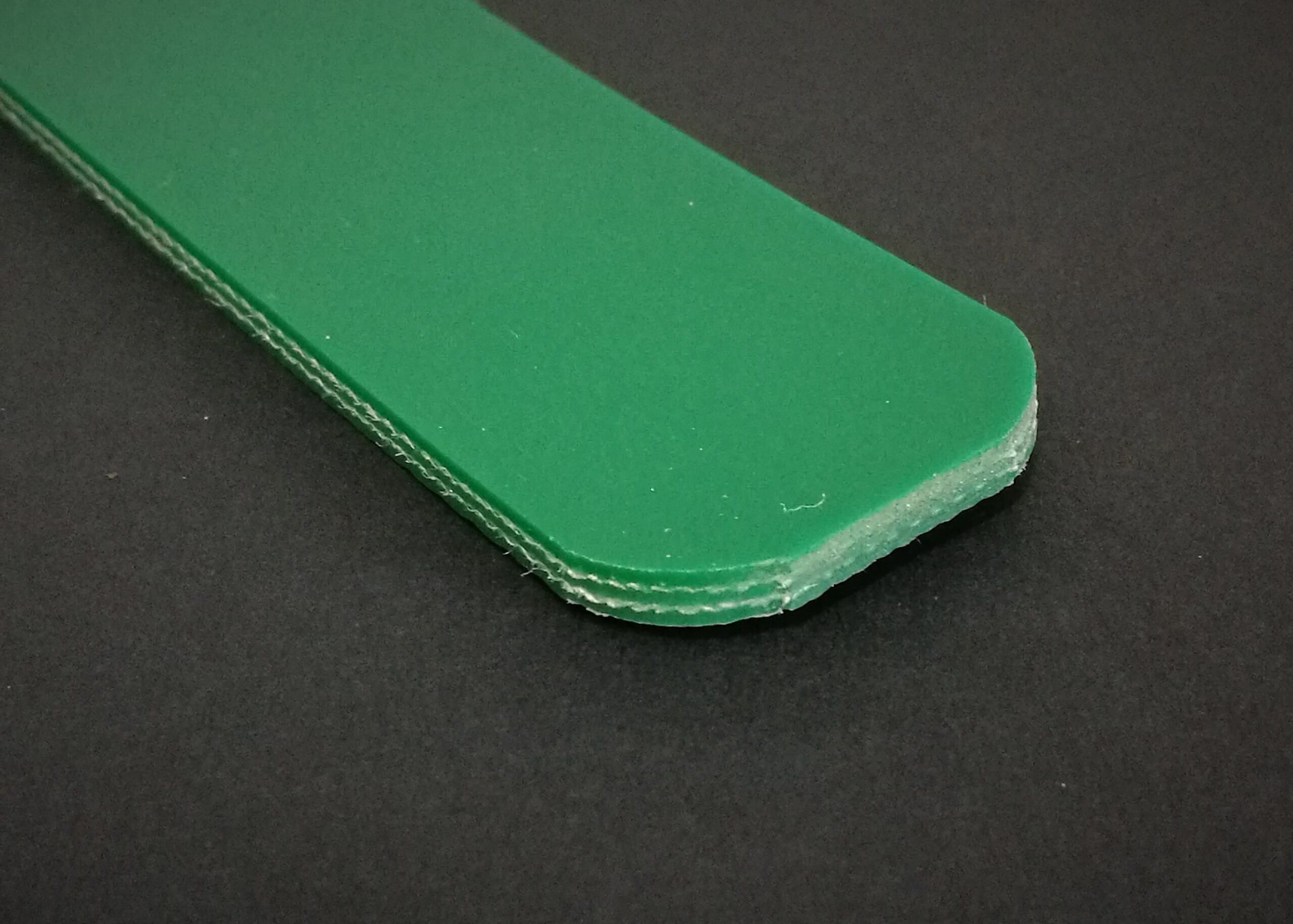

Strenex Z10/2V1/V1-32NP/GL PVC 2Ply Light Green Diamond Back Belting
The Strenex Z10/2V1/V1-32NP/GL PVC 2Ply Light Green Conveyor Belting is a common belt type used on agricultural and horticultural conveyors. It has an inverted diamond back traction surface and a thick abrasion resistant cover which gives exceptional resistance to cuts and damage.
Your benefits
- Sealed diamond back underside traction layer
- High duty abrasion resistant conveyor surface
- Economic pricing
- Suitable for fasteners or endless splicing
Product Construction
Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: smooth, non adhesive
Colour conveying side: light green
Cover thickness conveying side: 0.7 mm
Shore hardness A° 74
Material traction layer: Polyester fabric
Number of fabrics 2
Material running side: inverted diamond
Characteristics running side: sliding
Colour running side: light green
Product Specifications
Total thickness: 3.2mm (+/- 0,1 mm)
Belt weight: 3.81 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 10 N/mm
Minimum pulley diameter: 80 mm
Knife edge suitable: no
Operation temperatures: -10…+70°C
Permanently antistatic: no
Flammability: no
FDA Food suitability: no
EU Food suitability: no
Installation Terms
Slider bed suitable: yes (under certain conditions)
Carrying rollers suitable: yes
Low noise application: no
Accumulation mode: no
Inclined transportation: no
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,3
Friction coefficient on slider bed with friction cover: 0,25
Troughed installation: no
Cross rigidity: yes
