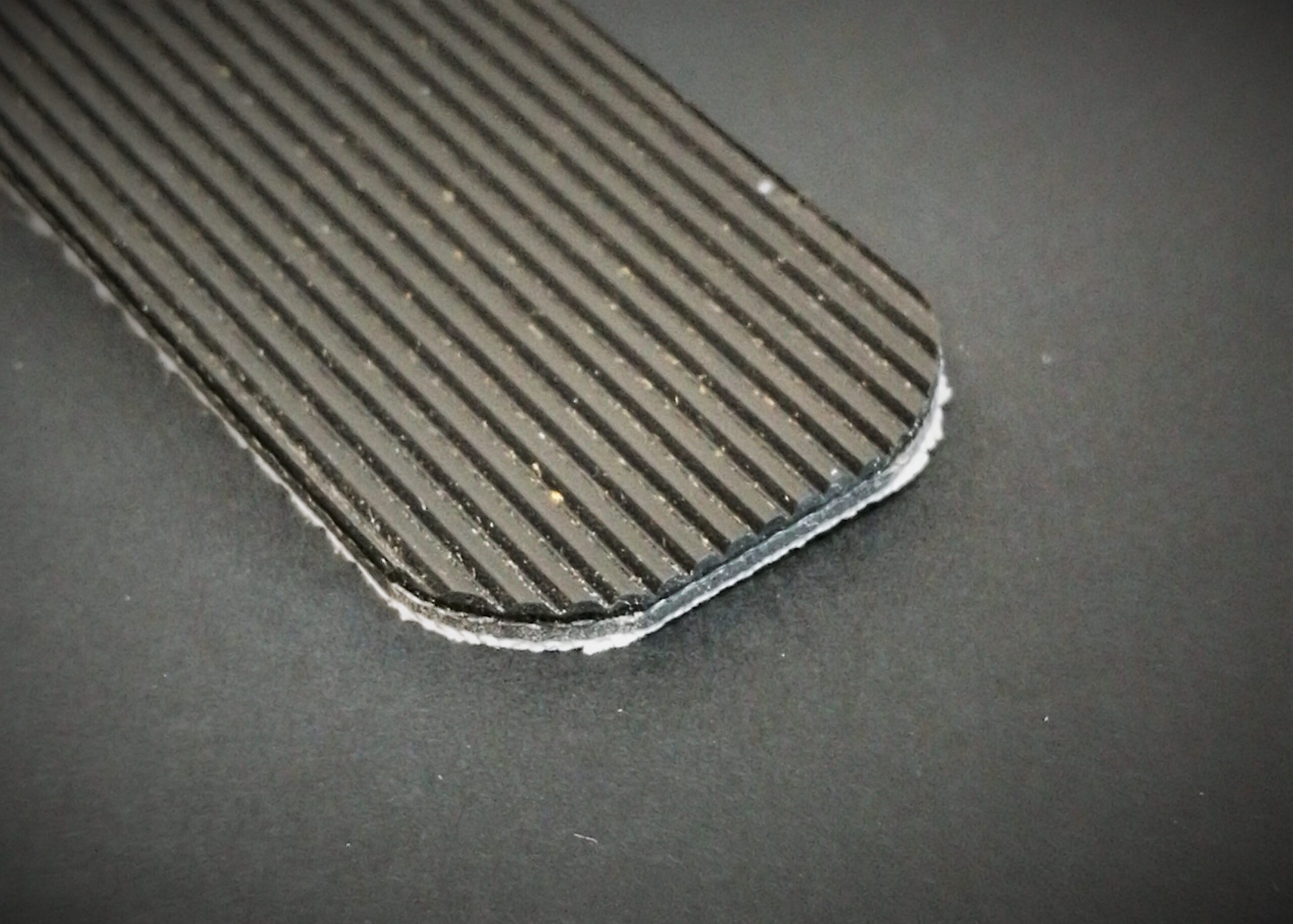

Strenex Z10/2F/V6-25LG-ANT-SE PVC 2Ply Longitudinal Grip Black Belting
The Strenex Z10/2F/V6-25LG-ANT-SE PVC 2Ply Black Conveyor Belting is a common belt type in package and luggage handling. Its has low shore hardness conveying surface with longitudinal groove profile which provides excellent grip and adhesion on flat surfaces such as boxes, packages. It also has a low noise twill weave traction fabric which is perfect for slider bed construction A great option for inclined conveyors
Your benefits:
- High grip conveying surface
- Well suited to incline conveyors
- Nice aesthetic in black colour
- Low noise twill weave fabric
- Suitable for fasteners or endless splicing
Product Construction
Material conveying side: Polyvinylchloride (PVC)
Characteristics conveying side: longitudinal groove, adhesive
Colour conveying side: black
Cover thickness conveying side: 0.7 mm
Shore hardness A° 55
Material traction layer: Polyester fabric silent
Number of fabrics 2
Material running side: Polyester fabric rigid
Characteristics running side: sliding
Colour running side: grey
Product Specifications
Total thickness: 2.5mm (+/- 0,15 mm)
Belt weight: 2.6 kg/m²
Maximum tensile force: 120 N/mm
– at 1% elongation 10 N/mm
Minimum pulley diameter:40 mm
Knife edge suitable: no
Operation temperatures: -10…+70°C
Permanently antistatic: yes
Flammability: no
FDA Food suitability: no
EU Food suitability: no
Installation Terms
Slider bed suitable: yes
Carrying rollers suitable: yes
Low noise application: yes
Accumulation mode: no
Inclined transportation: yes
Buckling conveyor: no
Curved installation: no
Friction coefficient on slider bed of steel: 0,15
Friction coefficient on slider bed with friction cover: 0,3
Troughed installation: no
Cross rigidity: yes
