Strenex GripTex™ Plate Grip Fasteners

The Strenex® GripTex Plate Grip Fasteners are the most effective and user friendly belt fasteners available for new splices, or belt repairs, in heavy duty rubber plied belts.

General Details

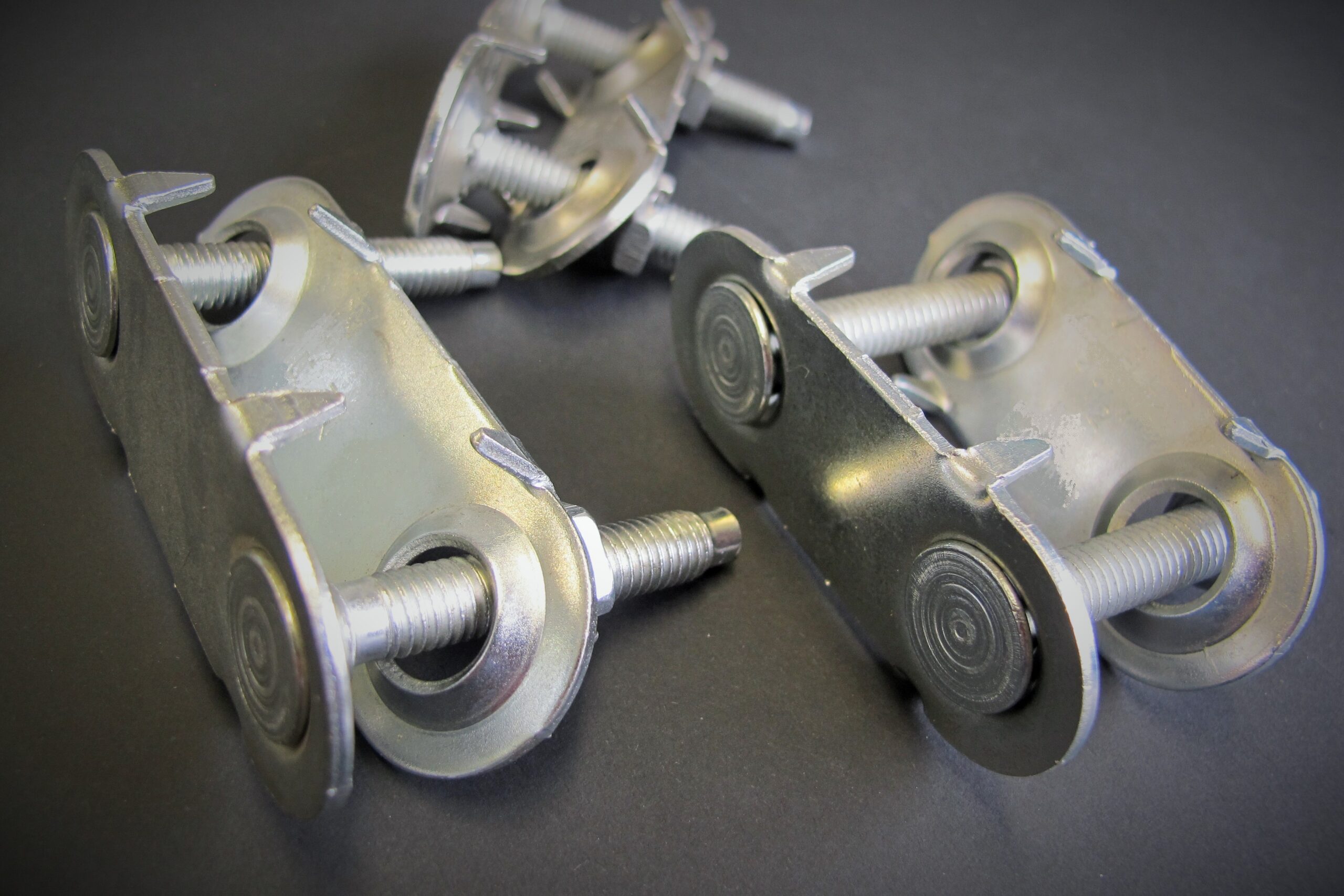

Strenex GripTex Plate Grip Fasteners

The Strenex® GripTex Plate Grip Fasteners are the most effective and user friendly belt fasteners available for heavy duty plied rubber belts.

They have the bolts fixed to the bottom plate which is secured by tensioning nuts. When the nuts are tensioned it brings the two plates together across the belt join. This pressure embeds the grips into the belt plies creating a strong durable splice. GripTex Plate Grip Fasteners can be fitted on a bias or longitudinally for temporary rip repair.
Using basic tooling GripTex Fasteners are an ideal splice or repair solution for heavy duty rubber conveyor belting.

Advantages

  • Low Cost: Competitive and economic splice
  • Easy Installation: Simple installation with basic tooling and drill only
  • Universal: Can be fitted laterally or longitudinally on the belt
  • Low Maintenance: When correctly installed GripTex will give a long working life
  • Non Corrosive: Galvanised Mild Steel for best corrosion resistance
  • Heavy Duty: Suitable for installation in harsh applications

View the Technical Info tab for detailed product specifications

Technical Info

Specifications

Product Type Belt Thickness MM Material
BR12S 8-12mm Galvanised
BR20S 10-14mm Galvanised

Available Products

Product Code Part Number Description Pack Type
67230 BR12S-25 Strenex GripTex Fasteners 1-1/2" 25pk Box
67231 BR12S-100 Strenex GripTex Fasteners 1-1/2" 100pk Bucket
67232 BR20S-25 Strenex GripTex Fasteners 2" 25pk Box
67233 BR20S-100 Strenex GripTex Fasteners 2" 100pk Bucket

Compatible with common brand installation tooling

Order Enquiry

Strenex Fastener Enquiry

  • 9 + 92 =
Installation

Installation Instructions:

  1. Get square 90deg cut belt ends together and nail to a board.
  2. Drill or wad punch holes for bolts at correct centers across the splice using the provided template
  3. Placed the GripTex bottom units across in place
  4. Fit the Top plates
  5. Start the nuts on the threads
  6. Tension the nuts using the drill tool. Ensure they are tight enough so the plate grips embed in the belt plies
  7. Break off the extended threads using the bolt breakers
  8. Ensure there is no protruding thread ends to catch
  9. Cut 45 degree corners from the trailing edge
